SERVICE / REPAIR
(855) 879-8090phone icon
- please call for shipping charges.
- ETL listed A17.5 / B44 - A18.1

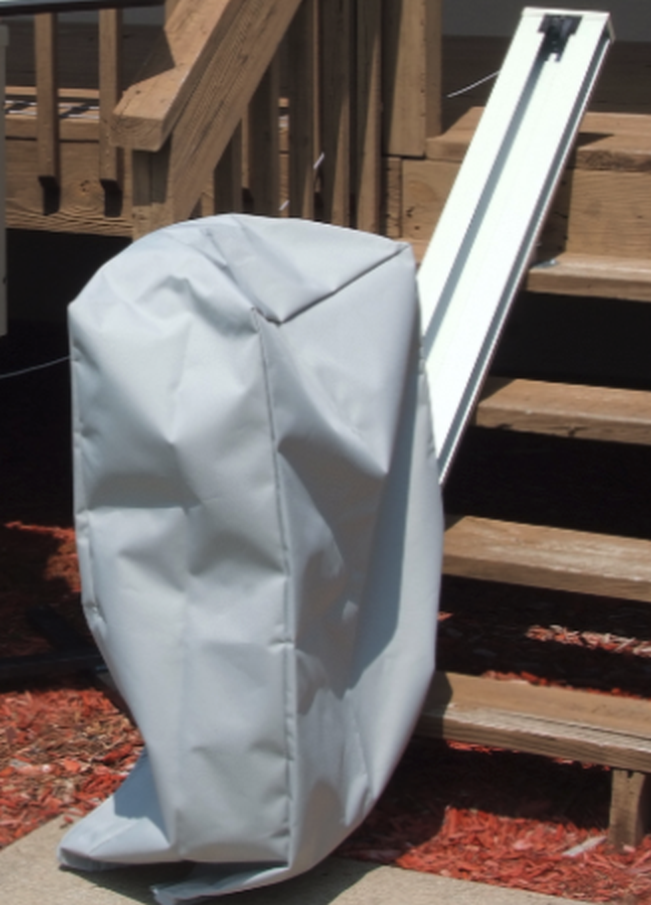

- Heavy duty canvas cover
- Outdoor powder coating
- Sealed switches and waterproof connections
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Chassis weight 40 lbs.
- Track weight for 8' section 36 lbs.
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

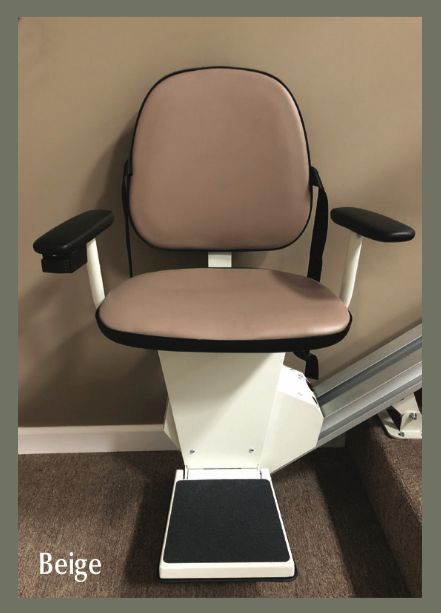

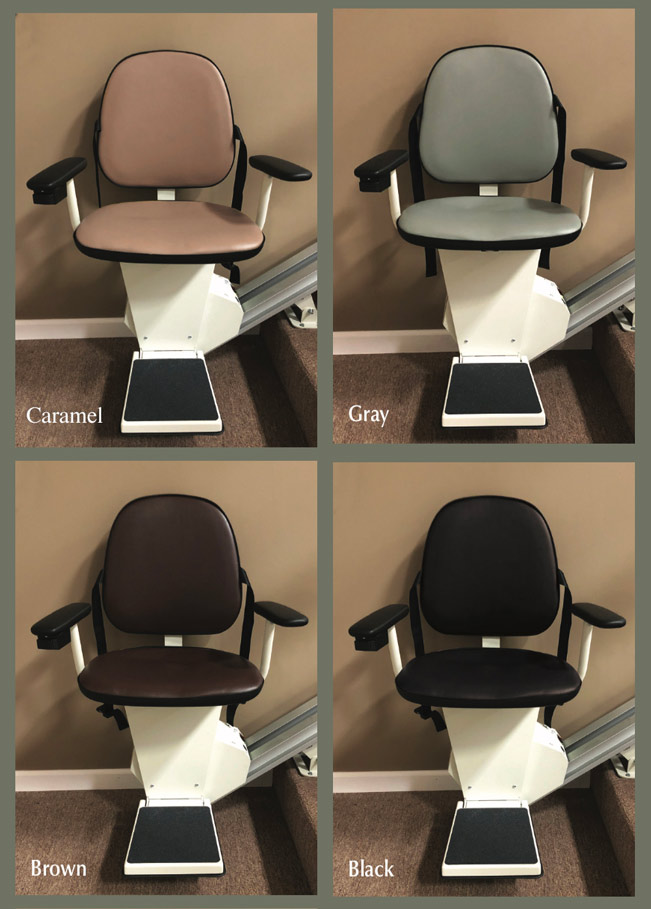

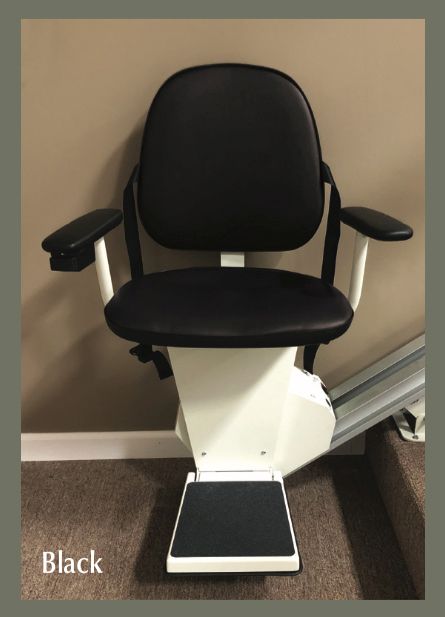

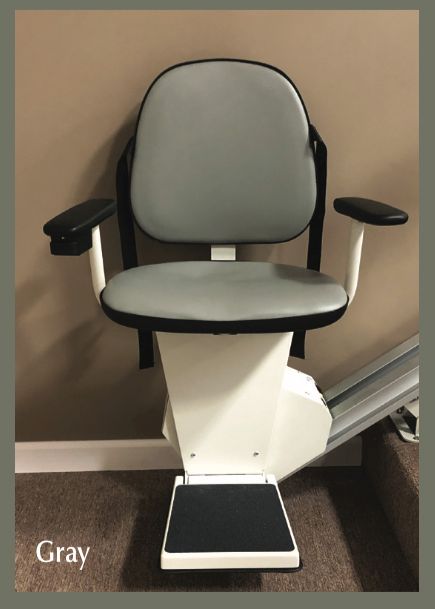

- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- Proudly made in the USA!
Warranty
2 years on parts
5 years on drive train, motor and circuit board
Options Available
- Stair Lift Orientation
Right $0.00
Left $0.00
- Upholstery Color
- Seat Width
Standard $0.00
Arms Extended 2" on Either Side $230.00
- Chassis / Track Custom Color
Chassis Custom Color $310.00
RAL Color for Chassis Powder Coat $0.00
Track Custom Color $462.00
RAL Color for Track Powder Coat $0.00
- Track Length
Standard 15' Of Track $0.00
Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost) $75.00
- Stair Lift Measurements According to Measurement Guide
Step 1 - Total Staircase Length $0.00
Step 2 - Top Landing to Bottom Step $0.00
Step 3 - Stair Width $0.00
Step 4 - Available Space at Bottom $0.00
Step 5 - Height of One Step $0.00
Step 6 - Length of One Tread $0.00
Step 7 - One Step Front Edge to Front Edge $0.00
Step 8 - Available Space at Top $0.00
- Options

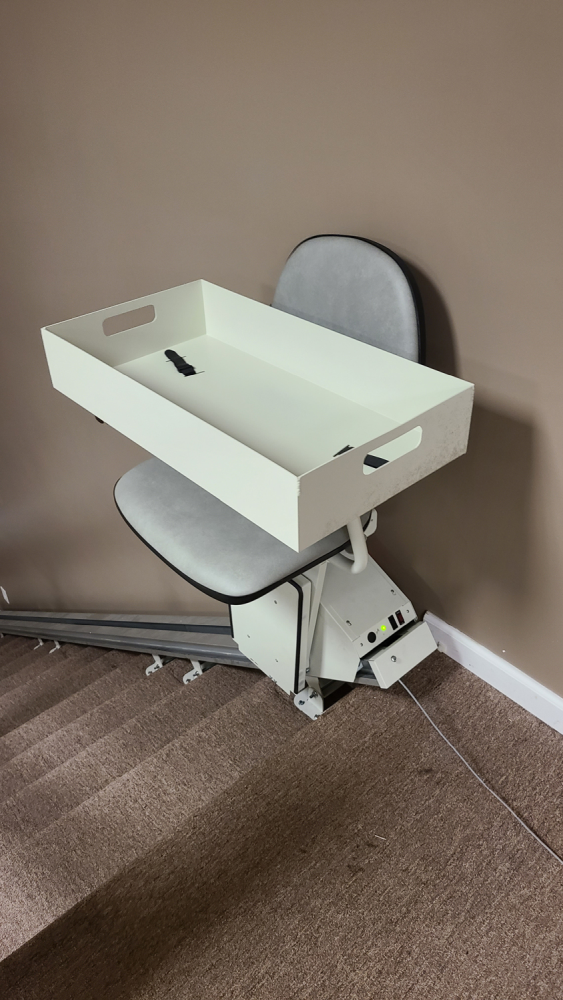

Cargo Tray Add-On $230.00
Wall Mounted Call/Send Controls (set) $154.00
Additional Key Fob Remote $77.00
Additional Standard Brackets $38.00
Tall Brackets $39.00
Extra Splice Bar $23.00
Key Switch $77.00
Lockable Battery Disconnect $77.00
Bluetooth Controller $124.00
Solar Power Unit $1,495.00
- Installation
Self-Install $0.00
Nationwide Installation Service $599.00
Double Stair Lift Installation Service - Per Stair Lift $437.50
Nationwide Measurement and Installation $749.00
Stair Lift Removal and Disposal $499.00
- Installation Special Cases
Installation In Remote or Limited Access Location $285.00
Installation On Concrete, Steel, or Tile Stairs $300.00
- Shipping
Additional Shipping Charge for Unit with More Than 16' of Track $154.00
Shipping to Alaska or Hawaii (Call for Price) $0.00
