Crest Lake Home Lift

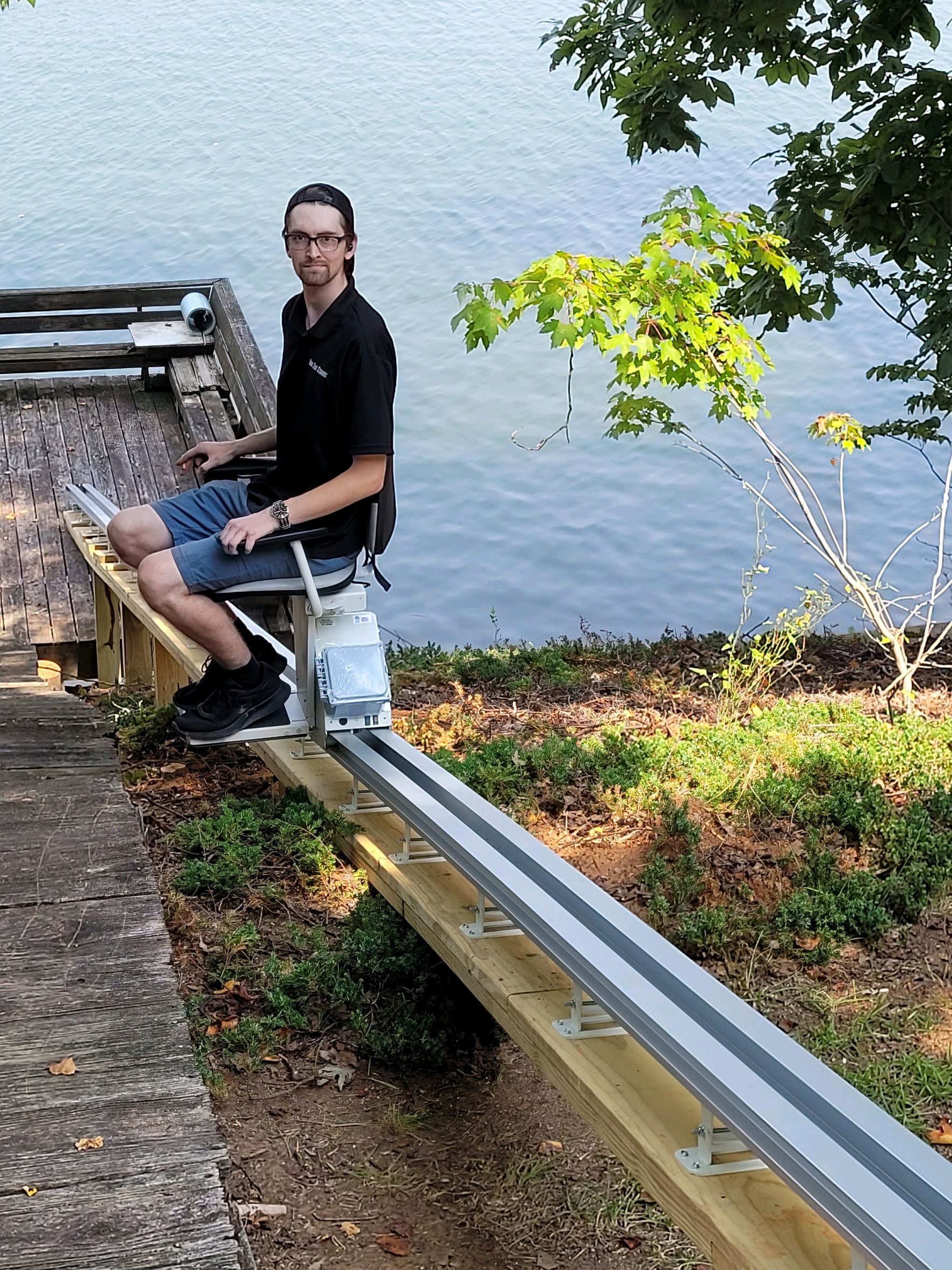

  • Person riding the lift

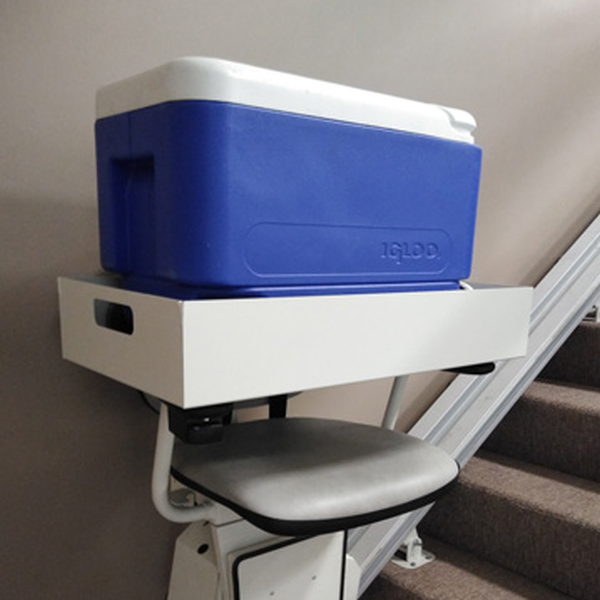

  • Example of a cooler in the cargo tray mounted on the lift
  • this here if they are not any documents
  • Brochure

SERVICE / REPAIR
(855) 879-8090phone icon

Stair Lift Repair and Servicing
Certifications: If this product has one.
$7,925.00
+shipping
    Add to Cart
instant coupon
*Non-Continental U.S. States & Territories
- please call for shipping charges.

Click Here to Submit Your Photos
Product Description
Ratings
(0)
(0)
Write a Review!

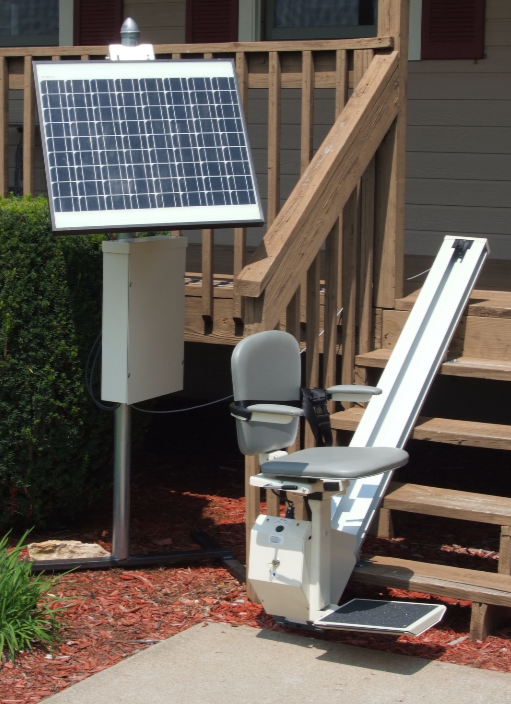

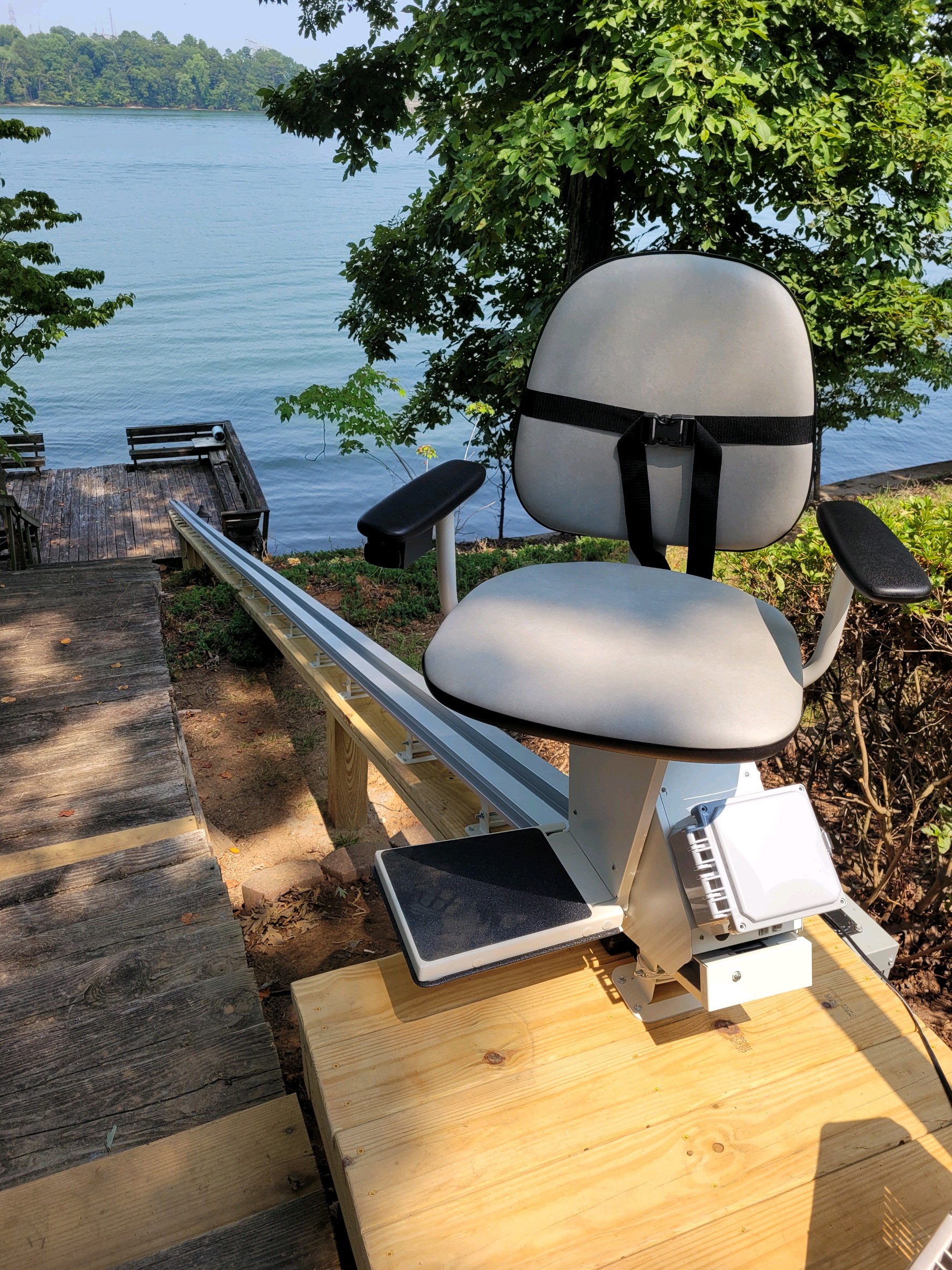

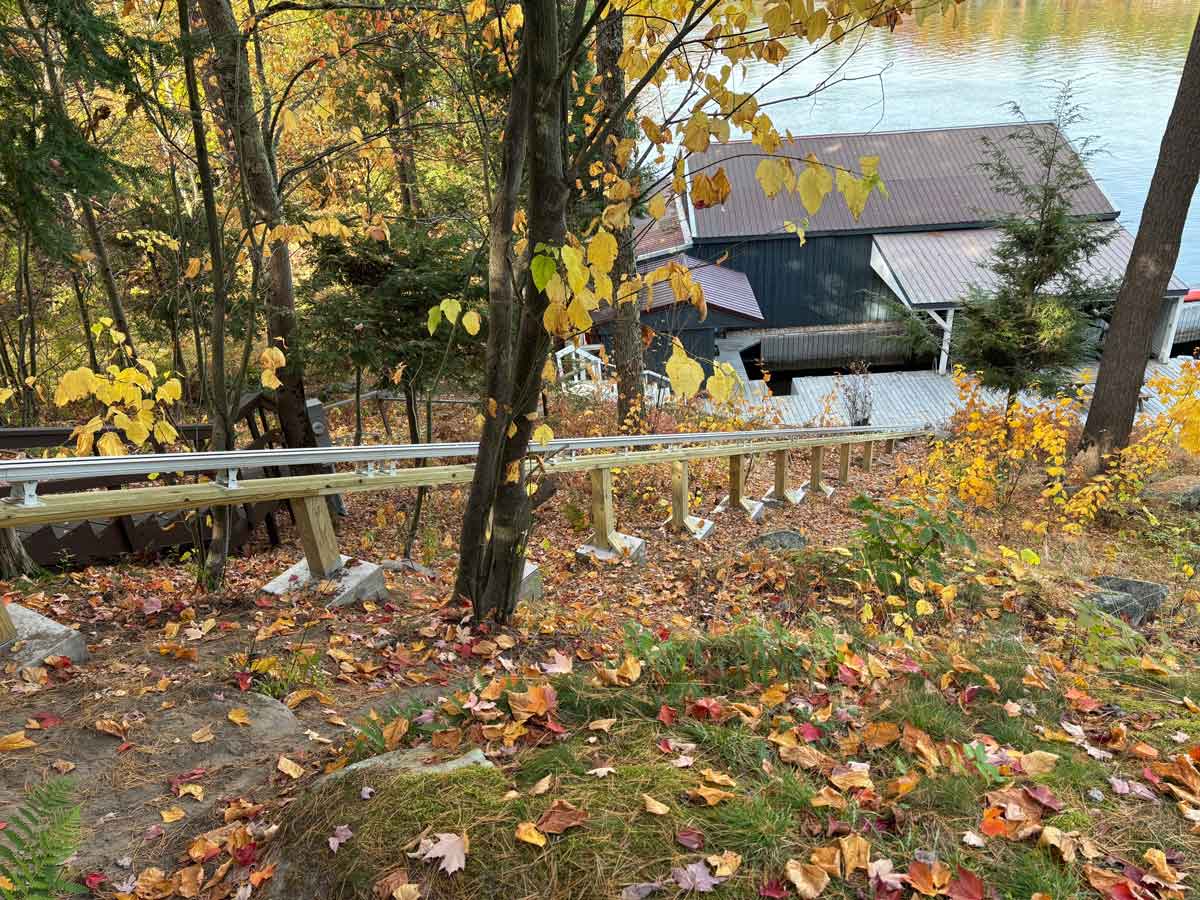

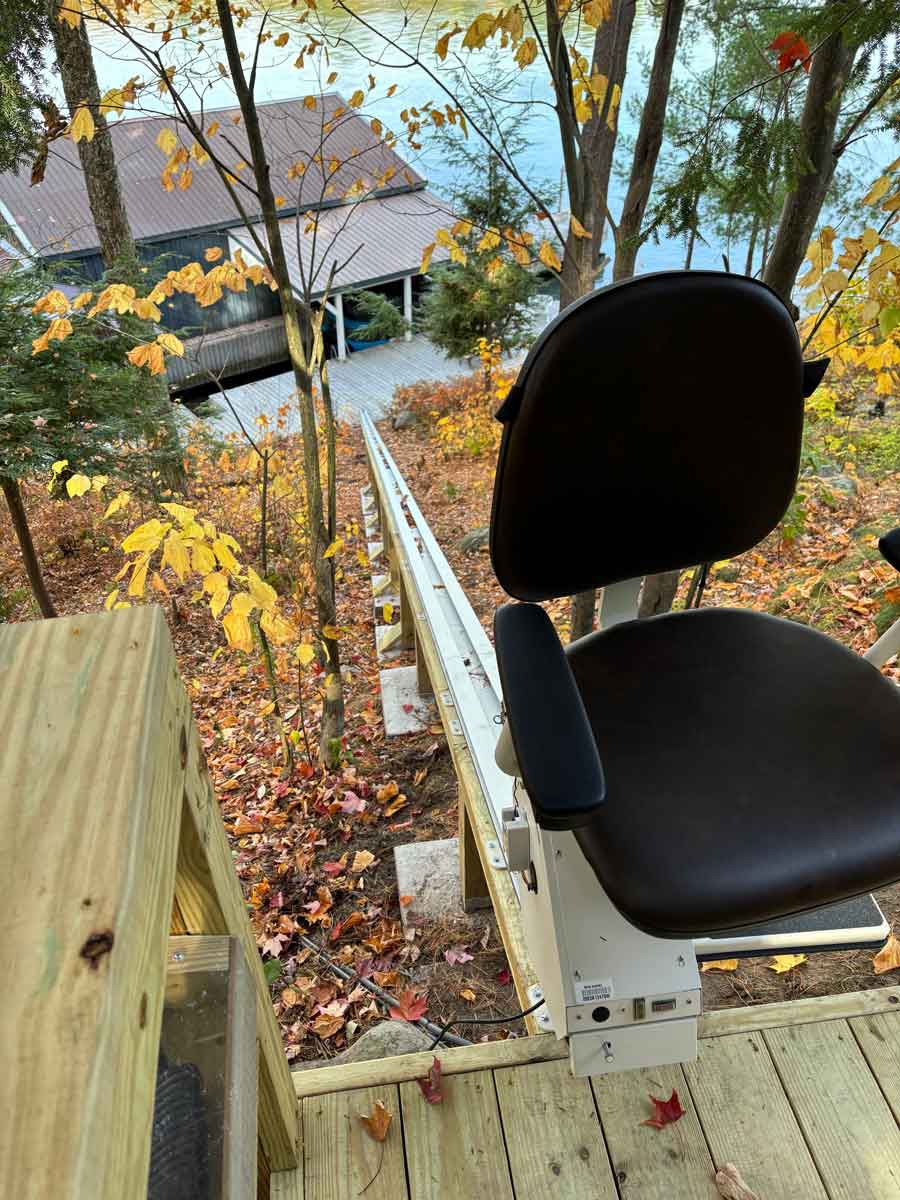

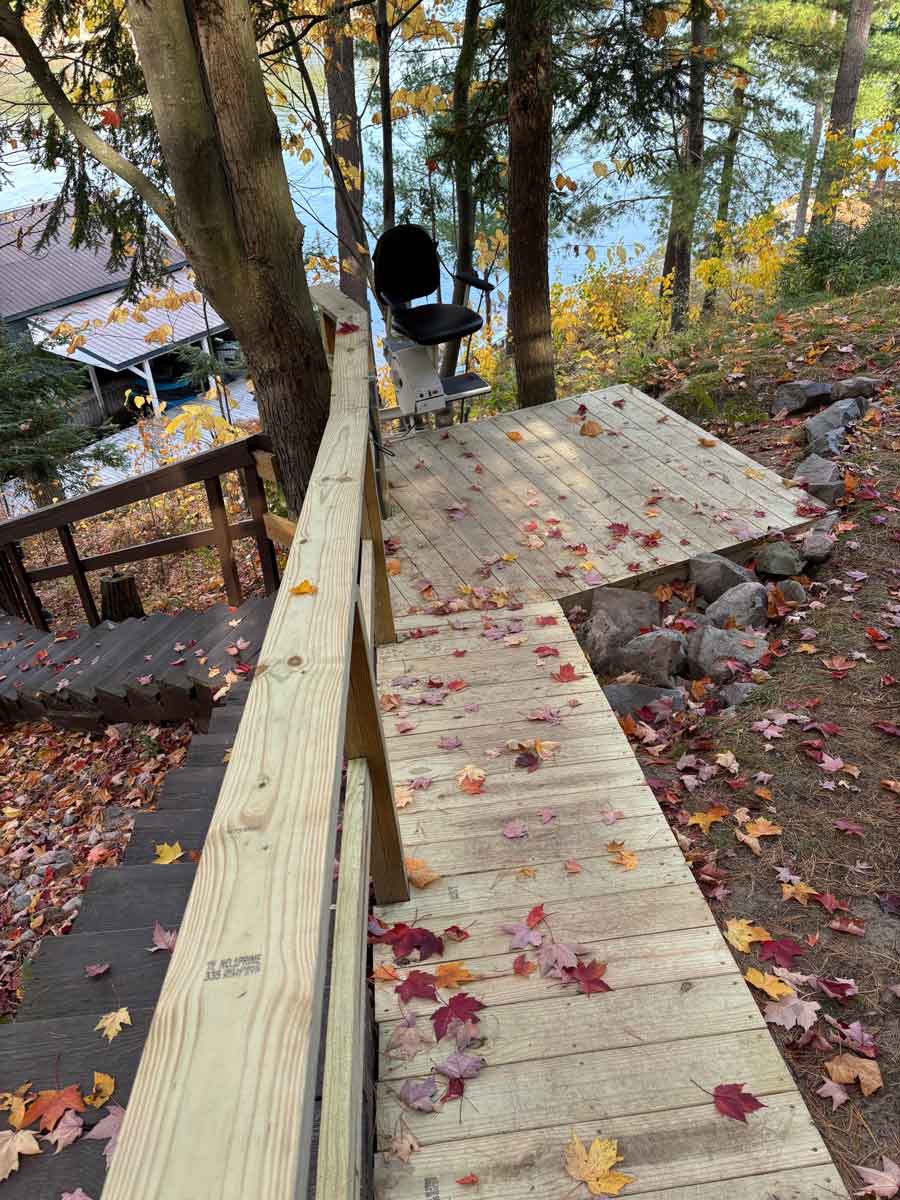

With a price much lower than a tram, the Crest Lake Home Lift provides an extra long track outdoor lift suitable for lake living. If your installation is away from the power grid, the optional solar charger for the included batteries will keep your lift ready to go when you are. (Solar Charger must be placed where it has good view of the sun, not under tree or other shade.)

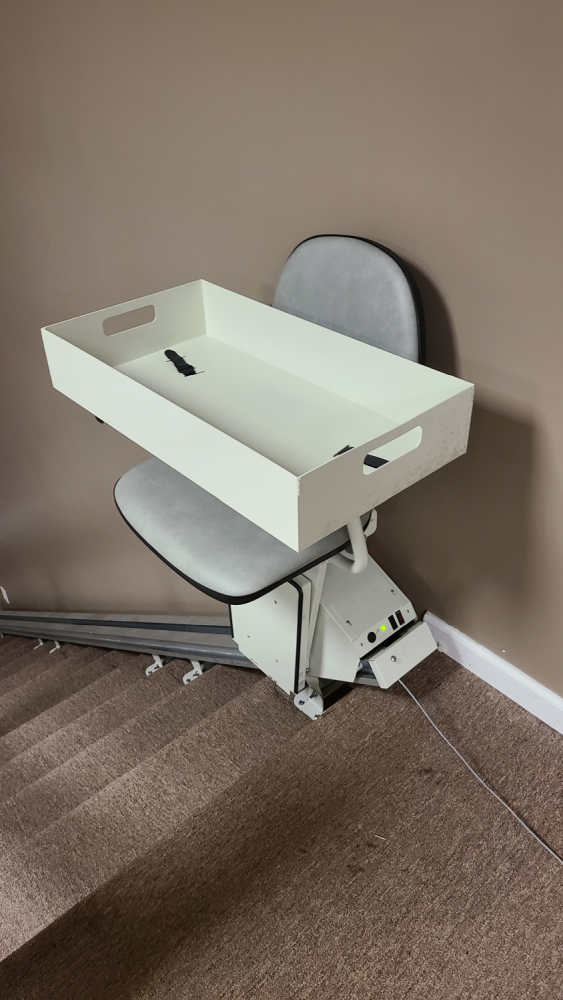

The standard lift provides a 50' track but that can be extended with the option of up to 100'. A cargo tray comes standard with the Crest Lake Home Lift which allows the easy transport of bulky or heavy items such as a 48 quart cooler.

Call our lift experts and begin enjoying your lake life.

Warranty

1 year on batteries
2 years on parts
5 years on drive train, motor and circuit board
Product Specifications
Drive Type
Rack and Pinion
Battery Powered
Yes
Self Installable
No
Basic Installation Included
No
Standard Capacity
350 lb
Max Track Length, Standard
50'
Max Track Length, Optional
100'
Rail Angle, Min
25°
Rail Angle, Max
45°
Track Material
Anodized Aluminum
Swivel Seat
Yes
Swivel Seat Rotation
90 degrees at top landing
Flip-Up Seat
No
Flip-Up Armrests
No
Constant Pressure Controls
Yes
Footrest Safety Sensor
No
Warranty
1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board
Track Width
6.5"
Digital Diagnostics Display
No
Key Lock
No



Options Available

  • Stair Lift Orientation

    • Right   $0.00

    • Left   $0.00

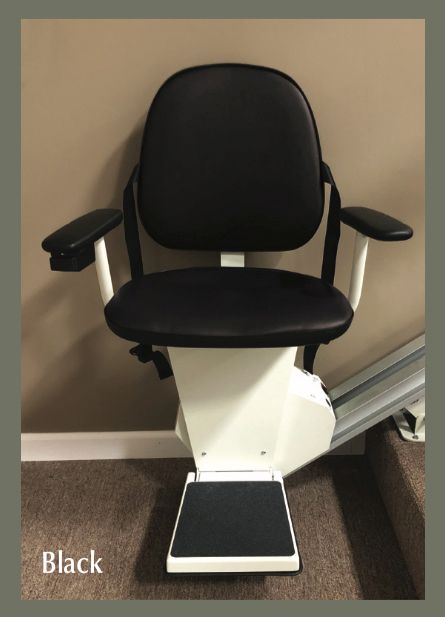

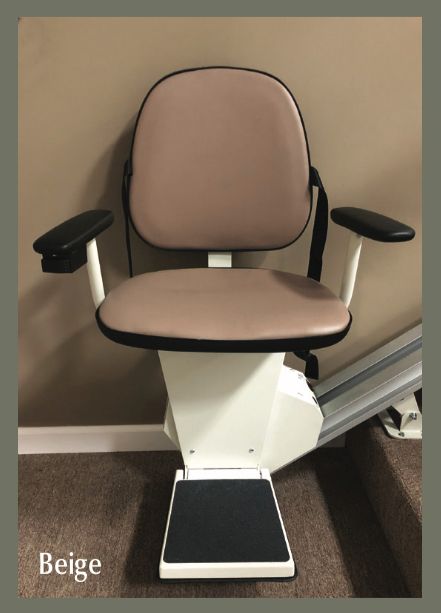

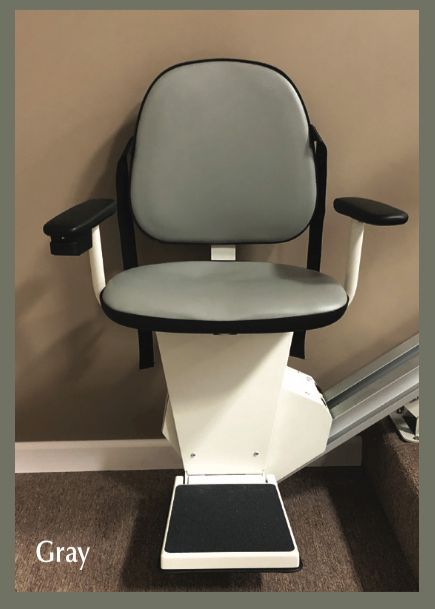

  • Upholstery Color
  • Chassis / Track Custom Color

    • Chassis Custom Color   $310.00

    • RAL Color for Chassis Powder Coat   $0.00

    • Track Custom Color - Up to 50'   $1,617.00

    • Track Custom Color - 51' Up to 100'   $3,234.00

    • RAL Color for Track Powder Coat   $0.00

  • Track Length

    • Standard 50' of Track   $0.00

    • Additional Track (Per Foot)   $75.00

  • Stair Lift Measurements According to Measurement Guide

    • Step 1 - Total Staircase Length   $0.00

    • Step 2 - Top Landing to Bottom Step   $0.00

    • Step 3 - Stair Width   $0.00

    • Step 4 - Available Space at Bottom   $0.00

    • Step 5 - Height of One Step   $0.00

    • Step 6 - Length of One Tread   $0.00

    • Step 7 - One Step Front Edge to Front Edge   $0.00

    • Step 8 - Available Space at Top   $0.00

  • Options
  • Shipping

    • Additional Shipping Charge for Unit with More Than 50' of Track   $154.00

    • Shipping to Alaska or Hawaii (Call for Price)   $0.00
