Harmar Summit AC Straight Outdoor Stair Lift

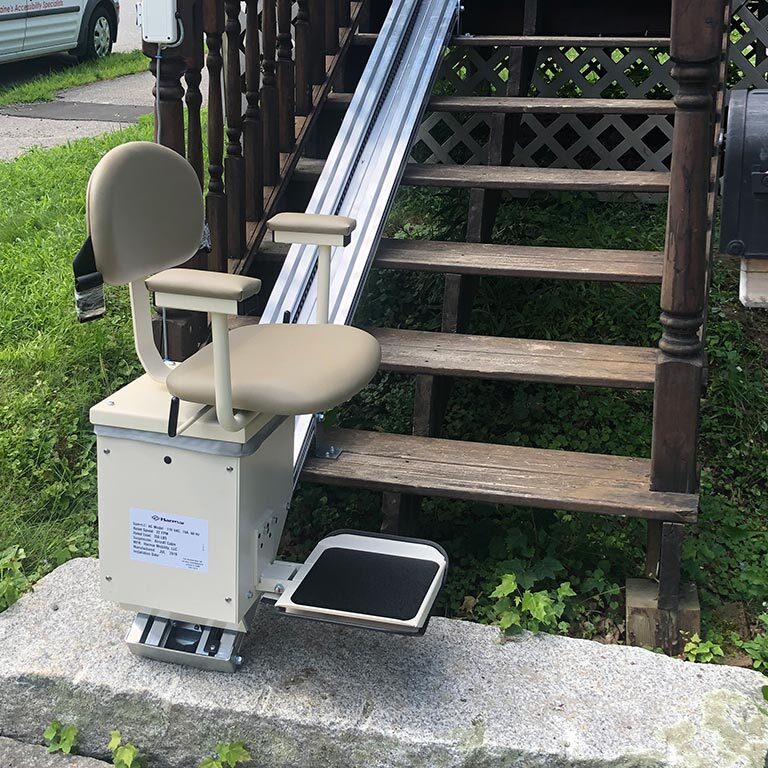

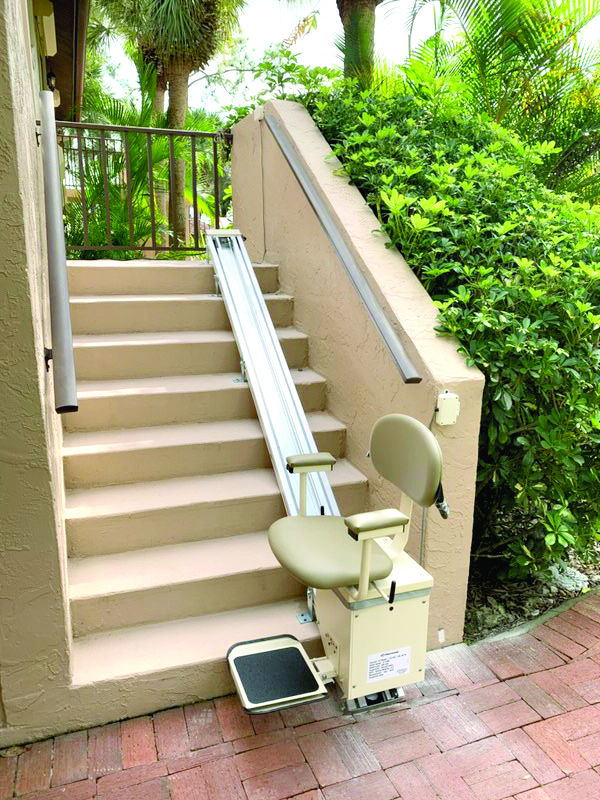

  • Showing Lift Installed on Outdoor Stairs

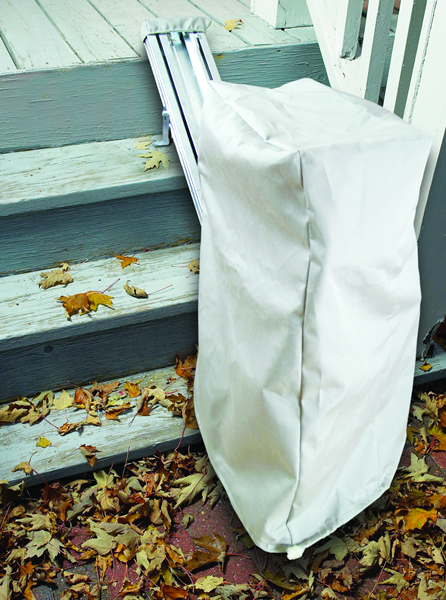

  • Showing with Lift Covered against Weather

SERVICE / REPAIR
(855) 879-8090phone icon

Stair Lift Repair and Servicing
Certifications: If this product has one.
ETL Listed
instant coupon
$4,085.00
+shipping
    Add to Cart
*Non-Continental U.S. States & Territories
- please call for shipping charges.

Sales & Product
Questions
(800) 746-5647

Technical Support
1 (866) 294-4460


Click Here to Submit Your Photos
Product Description
Ratings
(0)
(0)
Write a Review!
The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for protection of outside elements.
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)

Outdoor Stair Lifts are not intended for use in snow and ice


Features:
  • Header cover, internal chassis cover and a large weatherproof cover included
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Seat cushions in exterior marine grade vinyl
  • Separate controls at top and bottom of stairs
Product Specifications
Drive Type
Cable
Battery Powered
No
Self Installable
Yes
Basic Installation Included
No
Standard Capacity
350 lb
Max Track Length, Standard
15.5'
Max Track Length, Optional
25'
Rail Angle, Min
30°
Rail Angle, Max
45°
Track Material
Aluminum
Swivel Seat
Yes
Flip-Up Seat
Yes
Flip-Up Armrests
No
Constant Pressure Controls
Yes
Footrest Safety Sensor
Yes
Seat Width, Min
17.5"
Seat Depth
14"
Unit Footprint, In Use
24.5"
Unit Footprint, Parked
14"
Track Footprint
12"
Track Width
8"
Call Stations Included
Wired
Digital Diagnostics Display
No
Key Lock
No



Options Available

  • Vinyl Seat Color
  • Seat Size

    • 17.5" W   $0.00

  • Options

    • Keylock Package - Keyed Base & Keyed Call-Send Controls   $443.00

    • Keyed Base Only   $236.00

    • Grocery Basket   $293.00

    • Wireless Call/Send Controls For Outdoors   $565.00

  • Track Length (15' is Standard *)

    • * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.   $0.00

    • 15' of track * (180")   $0.00

    • Custom Cut track Less Than 15'   $150.00

    • Track length 16' and over reduces weight capacity to 250 pounds   $0.00

    • Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity   $350.00

    • Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity   $565.00

    • 20' of track Uncut 250 lb Capacity   $250.00

    • 25' of track Uncut 250 lb Capacity   $565.00

  • Orientation (looking UP the staircase)

    • The stair lift will be on the left   $0.00

    • The stair lift will be on the right   $0.00

  • Installation

    • NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.   $0.00

    • Self Installation   $0.00

    • Nationwide Installation (Not available in Oregon or Washington)   $599.00

    • Nationwide Measurement Service - Requires an Installation Selection (Not available in Oregon or Washington)   $749.00

    • Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)   $437.50

  • Installation Permit

    • License / Permit / Inspection   $425.00

    • Permit and Inspection   $350.00

    • Permit (Required in Kentucky for EACH item being installed)   $87.50

    • Permit & Inspection (Required in Georgia for EACH item being installed)   $250.00

    • Permit & Inspection (Required in Alabama. Additional units incur additional fee.)   $300.00

  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs   $300.00

    • Installation In Remote or Limited Access Location   $285.00

    • Existing Stair Lift Removal   $499.00

    • Additional Charge for Installation in the States of: New York, and Massachusetts   $150.00

  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.   $0.00

    • 1. Overall length   $0.00

    • 2. Top stair to bottom stair   $0.00

    • 3. Staircase width   $0.00

    • 4. Bottom clearance   $0.00

    • 5. Rise of one step   $0.00

    • 6. Tread of one step   $0.00

    • 7. Diagonal   $0.00

    • 8. Door at the top   $0.00

    • Need help measuring? Print out the "How to Measure" worksheet.   $0.00

Customer Reviews
This product currently has no reviews. Would you like to leave one?
