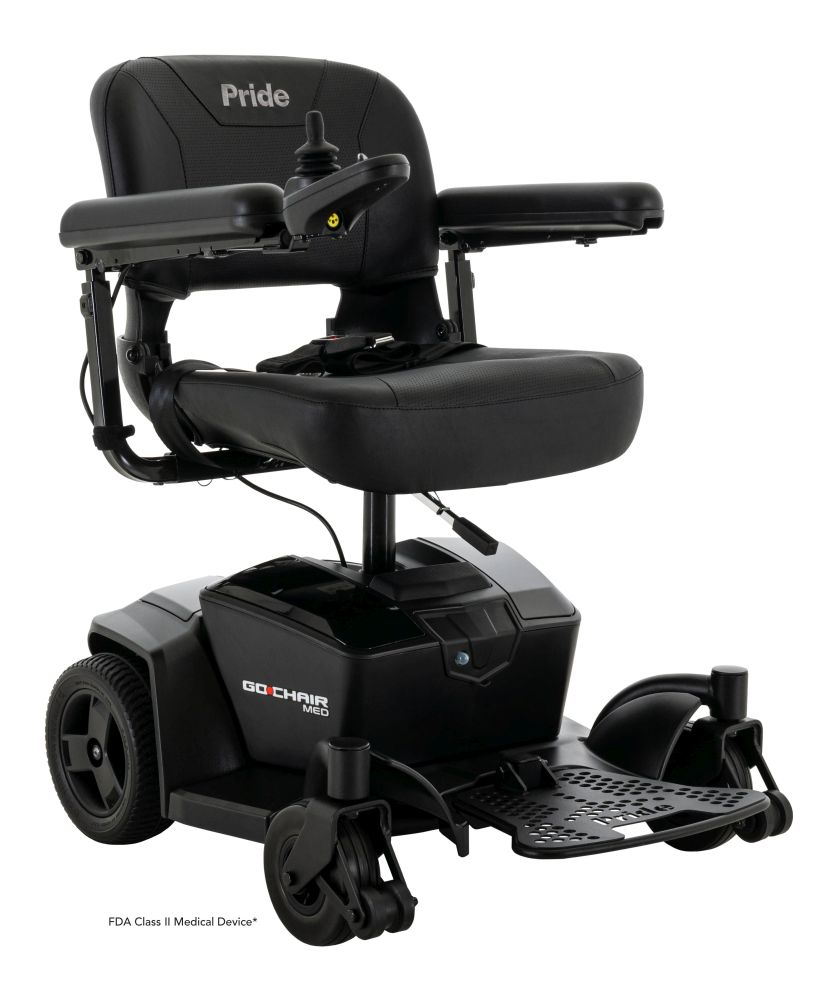

FDA Class II medical device*
Additional Features

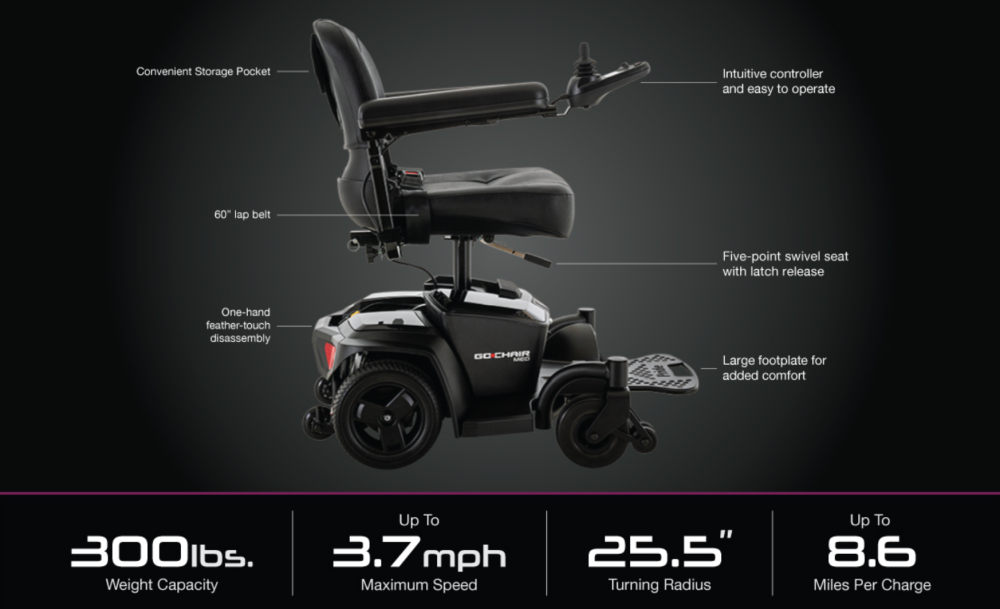

- 18" x 17" or 20" x 18" 5-point swivel seat with latch release and 60" lap belt
- Compact turning radius of 25.5"

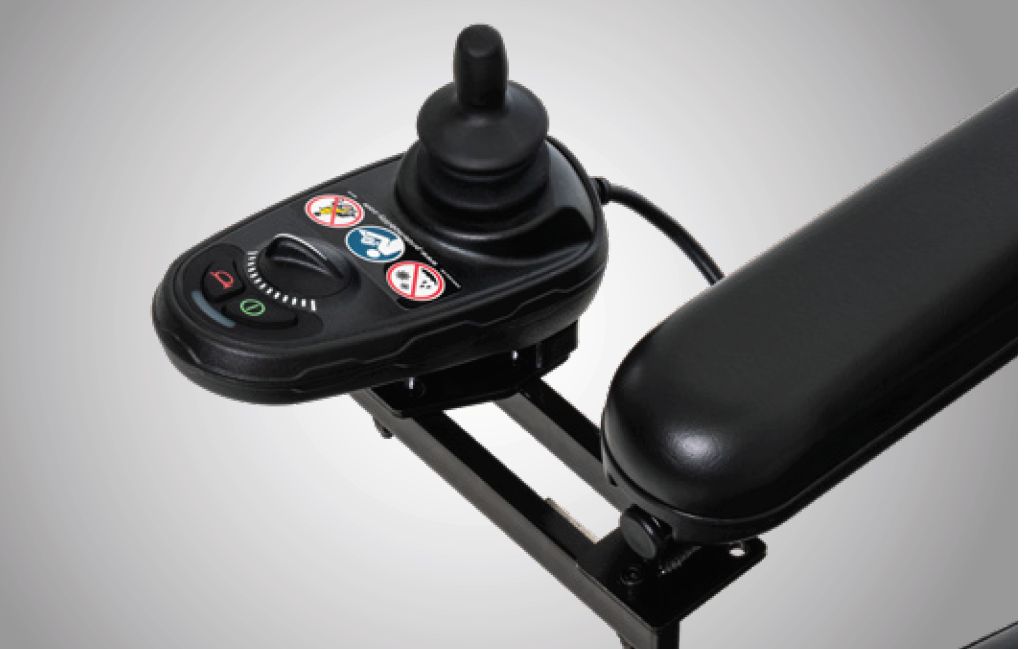

- Intuitive controller and easy to operate
- Range up to 8.6 miles
- Large footplate for added comfort

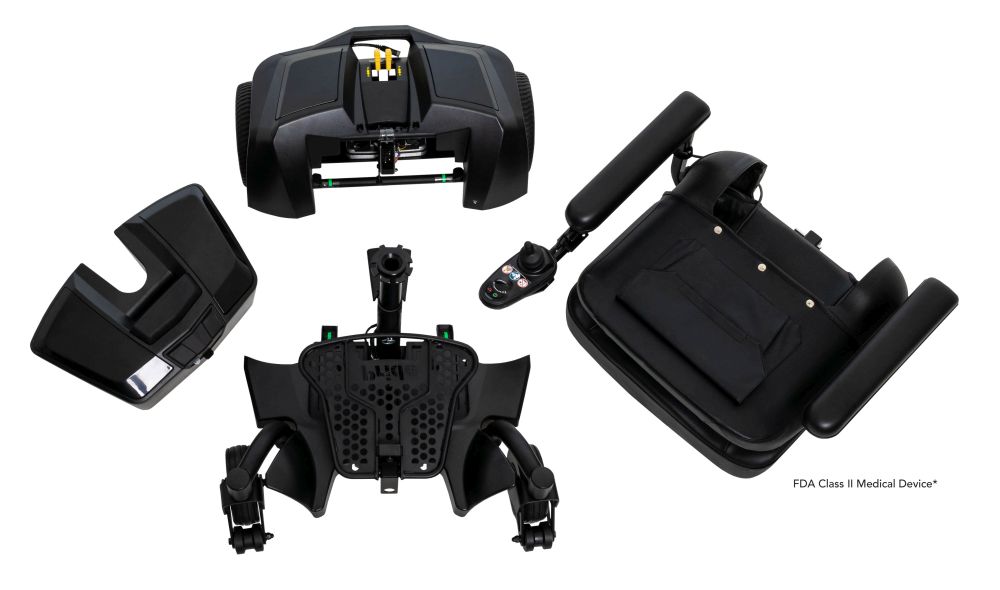

- One hand feather-touch disassembly
- Speed up to 3.7mph
- The heaviest piece is only 36 lbs
Options Available
- Color
Black $0.00
- Controller
PG GC3 (non-programmable), 40 Amp Controller $0.00
- Batteries
Battery Pack (contains a pair of 18 amp, 12V batteries) $0.00
- Swing-Away Joystick Mounting Bracket
Standard Mount $0.00
Swing-Away In-Line Mounting Bracket - Left $245.00
Swing-Away In-Line Mounting Bracket - Right $245.00
- Black VInyl Seat
Foldable Molded Plastic Seat, 18" W x 17" D (Standard) $0.00
Foldable Molded Plastic Seat, 20" W x 18" D $0.00
- Accessories
Regular Power Chair Cover $137.00
Cup Holder $32.00
Oxygen Tank Holder $98.00
Safety Flag $38.00
Saddle Bag (12.5" x 9.875") $40.00
Additional 18Ah Battery Pack $507.00
- Lap Belt
60" $0.00
50" $39.90
70" $39.90
- Rear Mount Cane/Crutch Holders
Single Rear Mount 3" $70.00
Double Rear Mount 3" $70.00
- Warranty
1 Year In-Home Parts & Labor Warranty $0.00
2 Year In-Home Labor Warranty $269.00
How To Measure For A Power Wheelchair
alt="Wheelchair Measuring Diagram - Side"/>Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.
Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.
Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.
Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.
Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.
