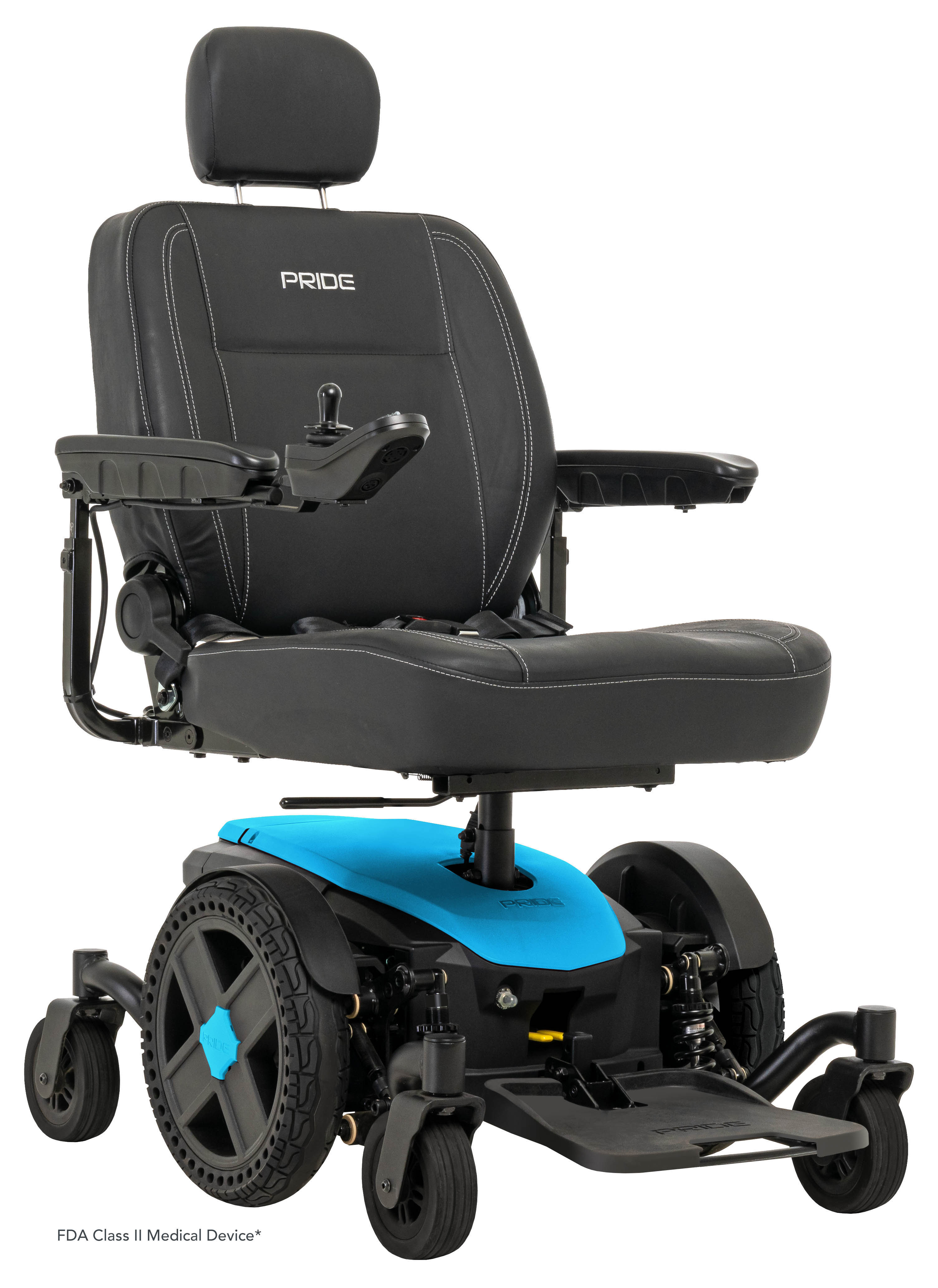

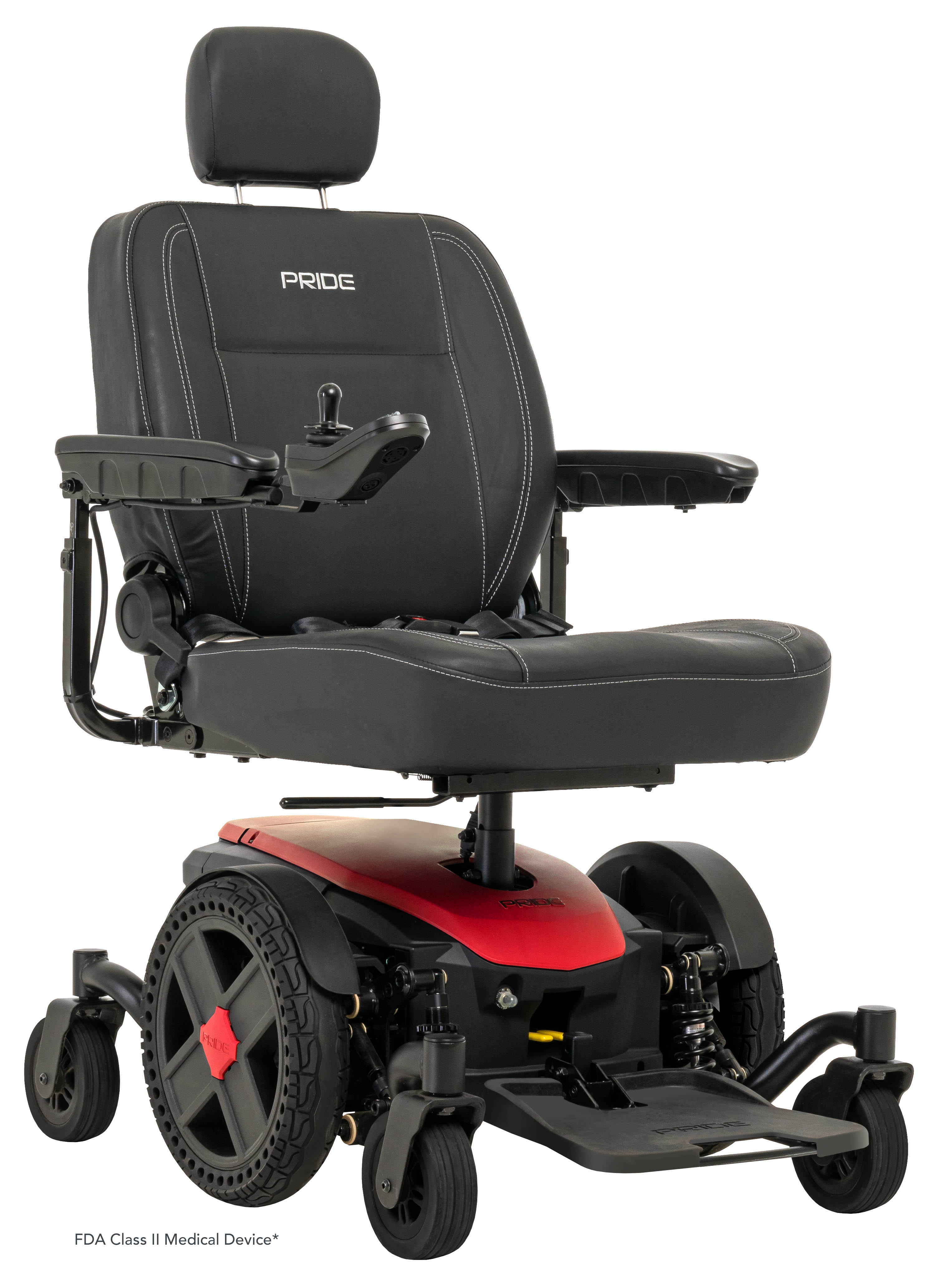

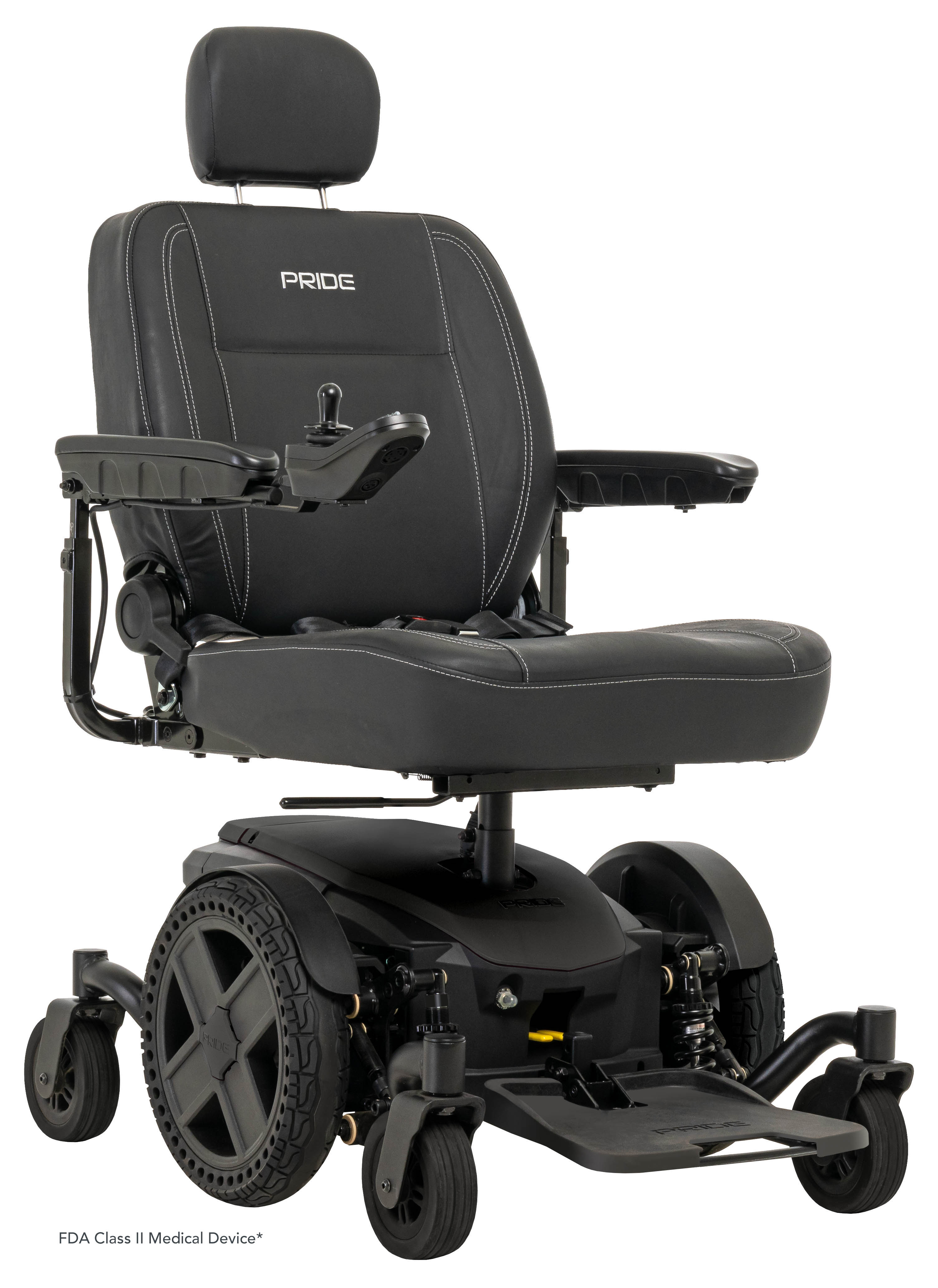

FDA Class II medical device*
A new 4.88 mph top speed allows quick travel when compared to the average person’s walking speed of around 2 mph. With a new 3" ground clearance and new 13.75" drive wheels, you sit higher and easily navigate over uneven terrain.

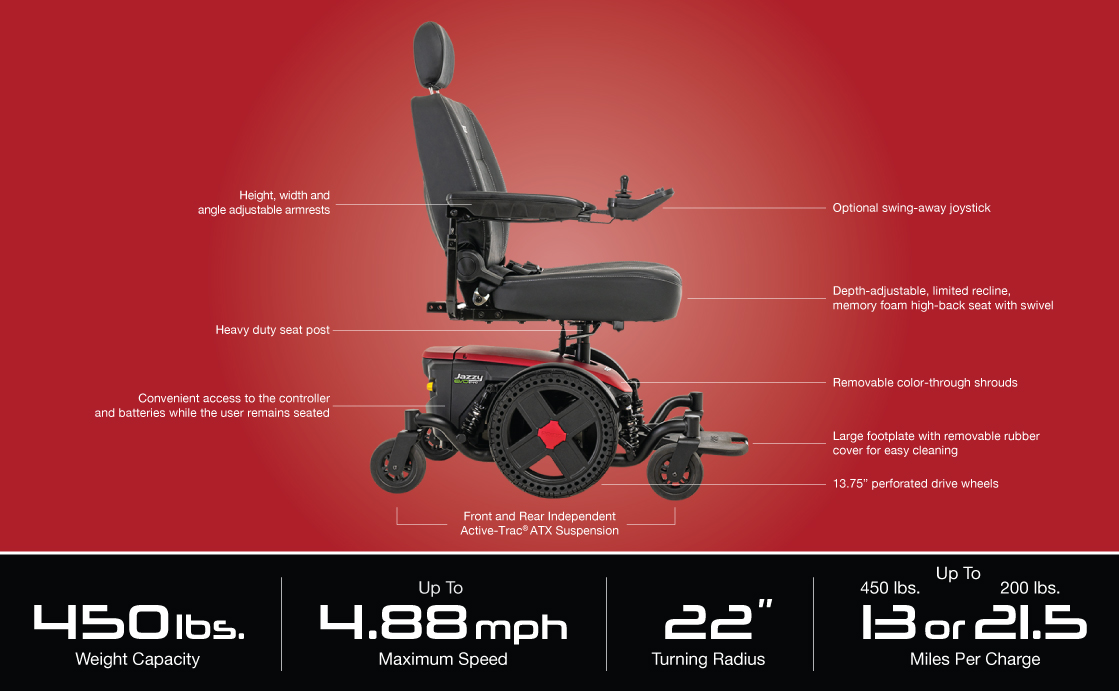

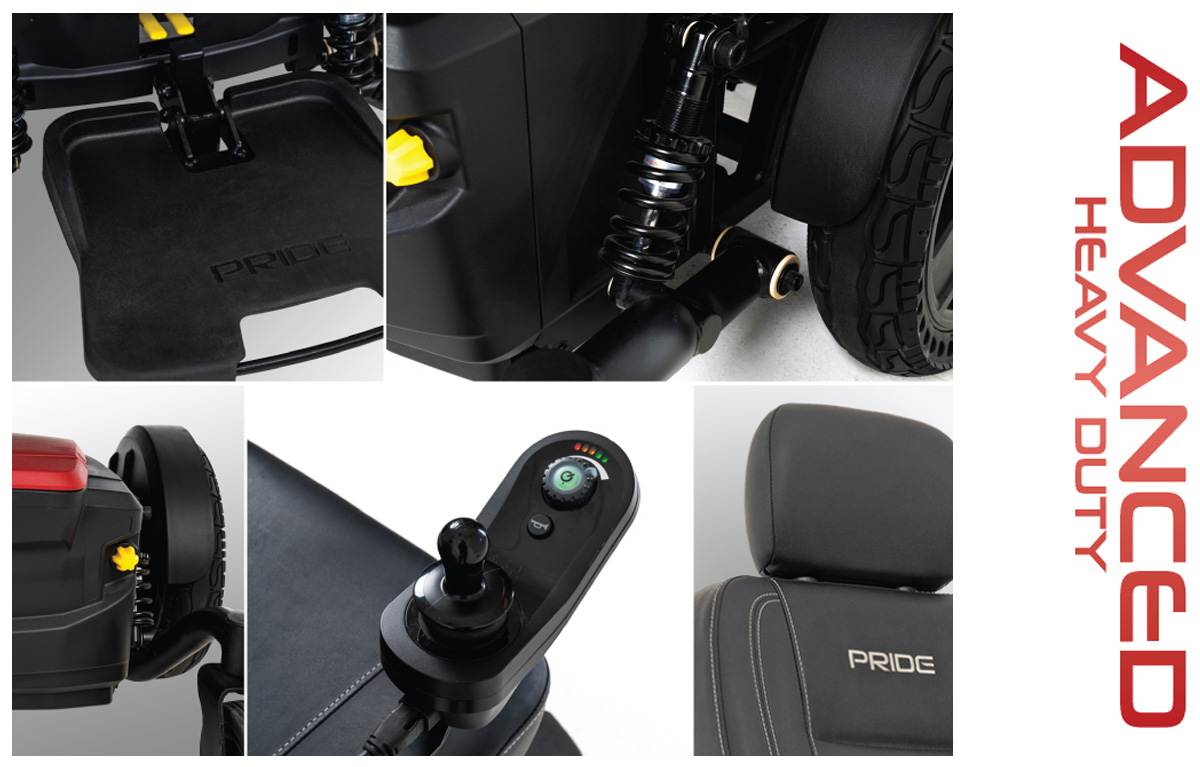

Features:
- 450 lbs. weight capacity
- Up to 4.88 mph
- 22" turning radius
- Up to 13 miles per charge at 450lbs, up to 21.5 miles per charge at 200lbs.
- Adjustable, limited recline memory foam high-back seat with headrest and single heavy-duty seat post allows the user to swivel
- 13.75" perforated drive tires
- 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level
- Removable matte finish color through shrouds and 6-colors
- Flip-up, height adjustable foot platform
- Full independent front and rear Active-Trac® ATX Suspension for enhanced performance over more varied terrain
- In-line joystick mount
- Convenient access to the controller and batteries while the user remains seated
Options Available
- Shroud Color (all are matte)
- Batteries
22NF Batteries (set of 2) $0.00
- Swing-Away Joystick Mounting Bracket
Standard Mount $0.00
Swing-Away Joystick Mounting Bracket - Left $245.00
Swing-Away Joystick Mounting Bracket - Right $245.00
- Seating (all come with 60" lap belt unless noted)
Captain Seat, Depth-Adjustable, Memory Seat, Limited Recline, High Back $0.00
18″W × 18″ – 20″D $0.00
20″W × 18″ – 20″D $0.00
22″W × 20″ – 22″D (with 70" lap belt) $0.00
Solid Seat Pan, Depth-Adjustable, Comfort Seat, Limited Recline, High Back $0.00
18″W × 18″ – 20″D $0.00
Solid Seat Pan, Deluxe Contour, Limited Recline, High Back $0.00
20″W × 20″D. $0.00
- Leg Rests
Foot Platform $0.00
Swing-Away Leg Rests (60-90 degree) $0.00
Swing-Away Leg Rests, 7.25" x 6" Footplates $172.00
Swing-Away Leg Rests, 8.5" x 6" Footplates $172.00
Elevating Leg Rests $0.00
Elevating Leg Rests, 8.5" x 6" Footplates $342.00
- Leg Rest Accessories
Heel Loops for Swing-Away Leg Rests (pair) $53.00
Heel Loops for Elevating Leg Rests (pair) $53.00
Residual Limb Support, Left $342.00
Residual Limb Support, Right $342.00
- Armrests - Required (Correct Ones for the Seat will be Provided)
Height Adjustable Flip-Up Armrests - Left $90.00
Height Adjustable Flip-Up Armrests - Right $90.00
- Rear Accessories (only one at a time)
Rear Basket for Deluxe Contour Seat $118.00
Rear Basket for Comfort/Memory Seat $118.00
Cane & Crutch Holder for Deluxe Contour Seat $110.00
Cane & Crutch Holder for Comfort/Memory Seat $110.00
Walker Holder for Deluxe Contour Seat $118.00
Walker Holder for Comfort/MemorySeat $140.00
Oxygen Tank Holder for Deluxe Contour Seat $125.00
Oxygen Tank Holder for Comfort/Memory Seat $103.00
- Other Accessories
Weather Cover, Large, Black $168.00
Saddle Bag - 12.5" x 9.875" $40.00
Saddle Bag - 11.75" x 17" $40.00
Cup Holder for Deluxe Contour Seat $32.00
Cup Holder for Comfort/Memory Seat $32.00
Cell Phone Holder $74.00
Flag Holder for Deluxe Contour Seats $35.00
Flag Holder for Comfort/Memory Seats $35.00
- Lap Belt (additional, a 60" is included)
50" $39.90
60" $39.90
70" $39.90
80" $39.90
90" $39.90
- Military Patches
- Extended Warranty
1 Year In-Home Parts & Labor Warranty $0.00
2 Year In-Home Labor Warranty $269.00
How To Measure For A Power Wheelchair
alt="Wheelchair Measuring Diagram - Side"/>Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.
Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.
Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.
Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.
Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.
