FDA Class II medical device*

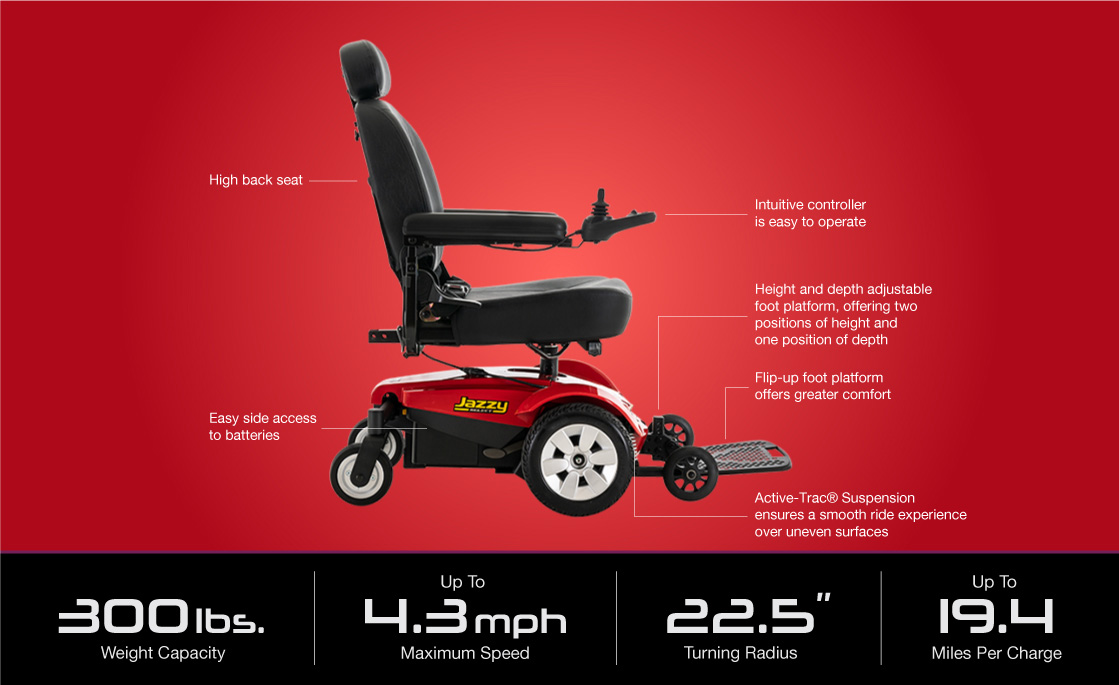

- Mid-wheel drive technology and a compact size is perfect for small spaces by offering a tight turning radius of 22.5"
- Dual in-line motors for enhanced efficiency, torque, range and performance
- Articulating rear caster beam works in conjunction with the ATX Suspension for a smooth ride over uneven surfaces
- Easy-access free-wheel lever
- Color-through shroud keeps the shroud looking new by reducing the visual scrapes and chips
Options Available
- Color

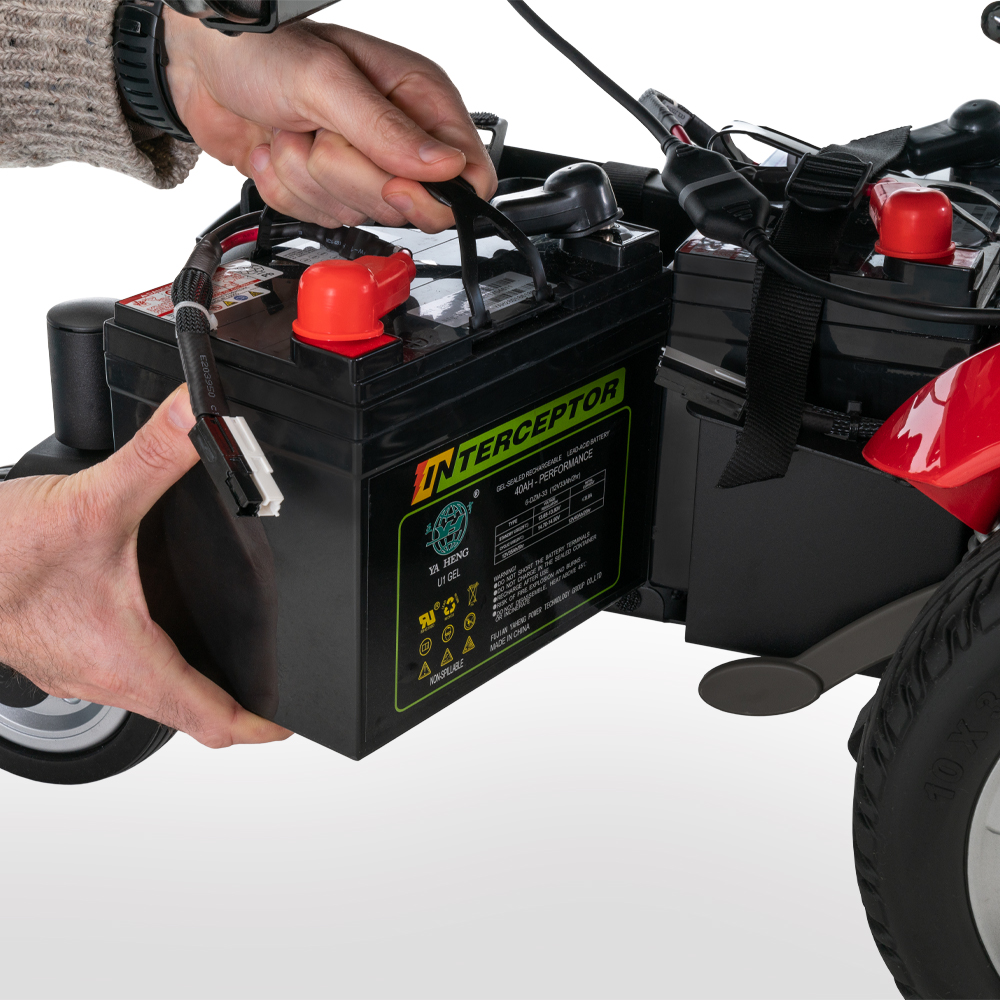

- Batteries
U-1 Batteries (2 required) $140.00
- Seating (Deluxe Comfort Seats May Require Longer Lead Time)
Captain Seat $0.00
Depth-Adjustable, Comfort Seat, Limited Recline, High Back $0.00
16″W × 16″ – 18″D $0.00
18″W × 18″ – 20″D $0.00
20″W × 18″– 20″D $0.00
Deluxe Contour, Limited Recline, High Back $0.00
16″W × 16″D $450.00
16″W × 18″D $450.00
18″W × 16″D $450.00
Solid Seat Pan $0.00
Depth-Adjustable, Comfort Seat, Limited Recline, High Back, with Solid Seat Pan $0.00
16″W × 16″ – 18″D $0.00
18″W × 18″ – 20″D $0.00
Deluxe Contour, Limited Recline, High Back, with Solid Seat Pan $0.00
20″W × 18″D $0.00
20″W × 20″D $0.00
16″W × 16″D $450.00
16″W × 18″D $450.00
18″W × 18″D $450.00
18″W × 20″D $450.00
- Arm Rests - (Required) Flip Up, Height-Adjustable, Full-Length
Comfort Seat Armrest, Left $90.00
Comfort Seat Armrest, Right $90.00
Deluxe Contour Armrest, Left $90.00
Deluxe Contour Armrest, Right $90.00
- Elevating Leg Rests
Elevating Leg Rests with 8.5″ × 6″ Foot Plates (pair) $342.00
- Swing Away Leg Rests (60-90 degrees in 5 degree increments)
Swing-Away Leg Rest with 7.25″ × 6″ Foot Plates (pair) $172.00
Swing-Away Leg Rest with 8.5″ × 6″ Foot Plates (pair) $172.00
- Leg Rest Accessories
Residual Limb Support, Left $342.00
Residual Limb Support, Right $342.00
Heel Loops (pair) for Swing-Away Leg Rests $53.00
Heel Loops (pair) for Elevating Leg Rests $53.00
- Joystick Mounting Brackets
Swing-Away Joystick Mount, In-line, Left $245.00
Swing-Away Joystick Mount, In-line, Right $245.00
- Rear Accessories
Rear Basket for Deluxe Contour Seat $118.00
Rear Basket for Comfort Seat $118.00
Cane & Crutch Holder for Deluxe Contour Seat $110.00
Cane & Crutch Holder for Comfort Seat $110.00
Oxygen Tank Holder for Deluxe Contour Seat $118.00
Oxygen Tank Holder for Comfort Seat $140.00
Walker Holder for Deluxe Contour Seat $125.00
Walker Holder for Comfort Seat $125.00
- Other Accessories
Medium Weather Cover $168.00
Cup Holder, for Deluxe Contour Seat $32.00
Cup Holder, for Comfort Seat $20.00
Flag Holder $35.00
Saddle Bag $40.00
- Lap Belt
50" $39.90
60" Included $0.00
70" $39.90
80" $39.90
90" $39.90
- Warranty
1 Year In-Home Parts & Labor Warranty $0.00
2 Year In-Home Labor Warranty $269.00
How To Measure For A Power Wheelchair
alt="Wheelchair Measuring Diagram - Side"/>Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.
Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.
Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.
Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.
Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.
