Crest Cargo Lift

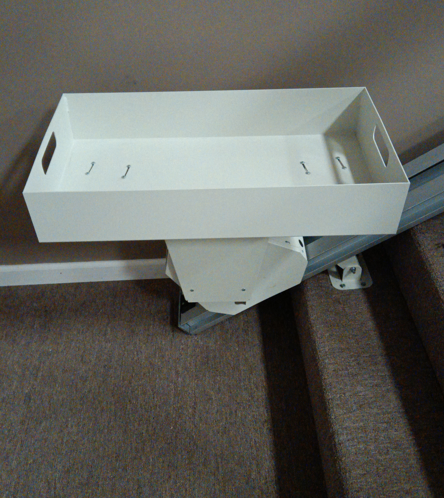

  • View at Bottom of Stairs

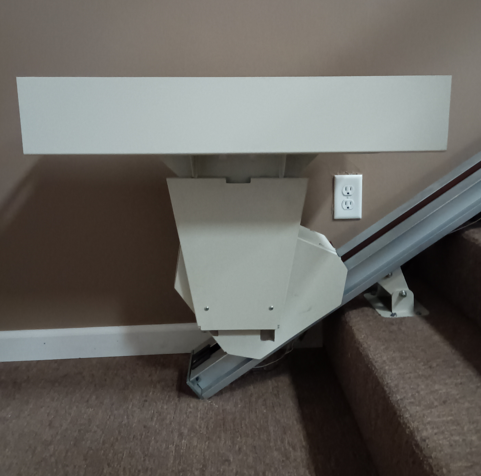

  • Side View

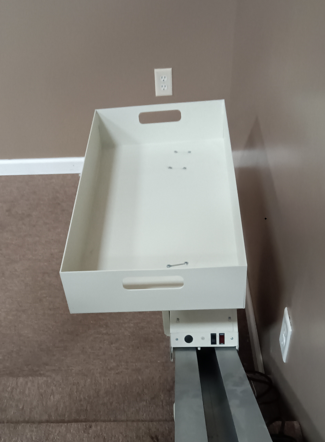

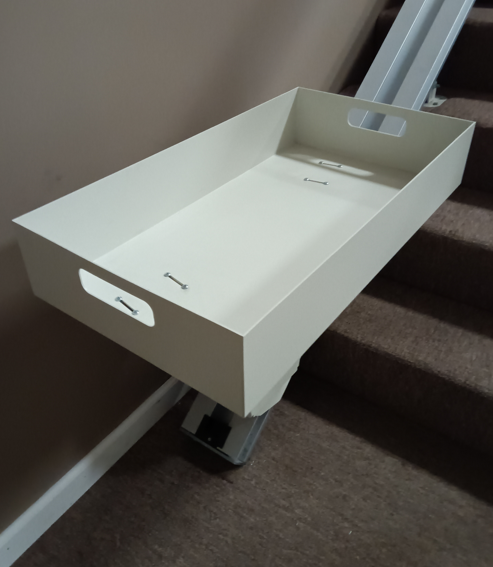

  • View from up the Stairs

SERVICE / REPAIR
(855) 879-8090phone icon

Stair Lift Repair and Servicing
Certifications: If this product has one.
$2,669.00
+shipping
    Add to Cart
instant coupon
*Non-Continental U.S. States & Territories
- please call for shipping charges.

Click Here to Submit Your Photos
Product Description
Ratings
(0)
(0)
Write a Review!

The Crest Cargo Lift comes to you at a low price but feature rich.

  • LIFETIME WARRANTY on All PARTS for the Original Purchaser *
  • ETL listed A17.5 / B44 - A18.1
  • Rack and pinion drive
  • 300 lbs capacity aluminum cargo tray
  • Interior gear rack
  • 25 to 45 degree angle applications
  • Quick adjustment limit cams
  • Wireless remote controls for upper and lower landings
  • 15' track standard, additional sections available
  • Chassis mounted auxiliary control switch
  • Obstruction audio beep notification
  • Battery operated system
  • Low profile stair-hugger track and bracket design - 2-1/2" track rest on stairs
  • Constant pressure controls
  • 3" to 6" horizontal extension at top landing (depending on angle)
  • ANODIZED aluminum rail
  • 300 lbs capacity
  • Overspeed governor
  • Proudly made in the USA!
* 2 year warranty on the battery

Warranty

2 years on batteries
Lifetime on all parts for the original purchaser
Labor and Shipping of Warranty Parts are not covered in the warranty.
Product Specifications
Drive Type
Rack and Pinion
Battery Powered
Yes
Self Installable
Yes
Basic Installation Included
No
Standard Capacity
300 lb
Max Track Length, Standard
15'
Rail Angle, Min
25°
Rail Angle, Max
45°
Track Material
Anodized Aluminum
Swivel Seat
No
Flip-Up Seat
No
Flip-Up Armrests
No
Constant Pressure Controls
Yes
Footrest Safety Sensor
No
Warranty
2 years on batteries / Lifetime on all parts for the original purchaser
Track Width
6.5"
Call Stations Included
2
Digital Diagnostics Display
No
Key Lock
No



Options Available

  • Stair Lift Orientation

    • Right   $0.00

    • Left   $0.00

  • Chassis / Track Custom Color

    • Chassis Custom Color   $310.00

    • RAL Color for Chassis Powder Coat   $0.00

    • Track Custom Color   $462.00

    • RAL Color for Track Powder Coat   $0.00

  • Track Length

    • Standard 15' Of Track   $0.00

    • Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)   $75.00

  • Stair Lift Measurements According to Measurement Guide

    • Step 1 - Total Staircase Length   $0.00

    • Step 2 - Top Landing to Bottom Step   $0.00

    • Step 3 - Stair Width   $0.00

    • Step 4 - Available Space at Bottom   $0.00

    • Step 5 - Height of One Step   $0.00

    • Step 6 - Length of One Tread   $0.00

    • Step 7 - One Step Front Edge to Front Edge   $0.00

    • Step 8 - Available Space at Top   $0.00

  • Options

    • Tall Brackets   $39.00

    • Key Switch   $77.00

  • Installation

    • Self-Install   $0.00

    • Nationwide Installation Service   $599.00

    • Double Stair Lift Installation Service - Per Stair Lift   $437.50

    • Nationwide Measurement and Installation   $749.00

    • Stair Lift Removal and Disposal   $499.00

  • Installation Special Cases

    • Installation In Remote or Limited Access Location   $285.00

    • Installation On Concrete, Steel, or Tile Stairs   $300.00

  • Shipping

    • Additional Shipping Charge for Unit with More Than 16' of Track   $154.00

    • Shipping to Alaska or Hawaii (Call for Price)   $0.00
